HY-550D technical characteristics of the liquid crystal display unit
Name: HY-550D LCD unit
HY-55OD Series LCD system, the terminal is designed for professional engineering company launched a grand display device having a large area of the new, ultra-narrow, LED backlight and so on. It is a large area of high-definition display systems integrated solutions, can be widely used conferencing, surveillance, lobby, education, entertainment and many other occasions
Technical features summary:
55 inches large panel
5.3mm Ultra Narrow splicing effect (bilateral)
The most advanced light-intensive LED backlight system
1920x1080 HD display, fine quality
LED backlighting good color reproduction, lifelike images
LED dot ultra-dense, uniform backlight brightness
Energy saving, environmental protection, no radiation
Backlight system without glass materials, safe transport
Long life, long-term use color uniformity is good, basically no maintenance

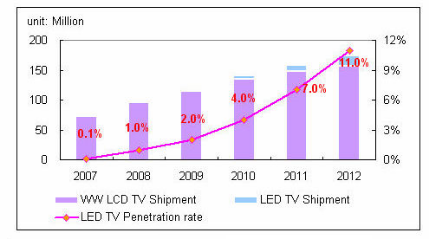

HY-550D LCD unit using the most advanced LED backlight technology, which greatly enhance the overall splicing unit display, outstanding technical features. LED-backlit LCD display unit LCD unit will eventually become a mainstream product.
HY-550D LC cell technology:
5.3mm Ultra Narrow splicing effect
55-inch LCD splicing seam small to 5.3mm
55 inches large LCD splicing unit
Currently liquid crystal monomer seam stitching unit narrowest

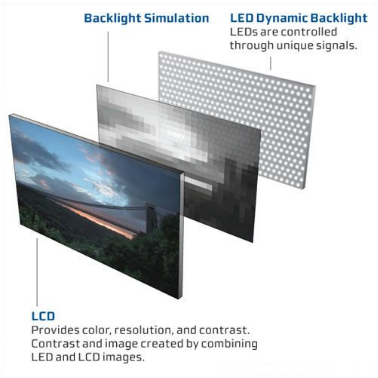

The most advanced light-intensive LED backlight system
HY-550D Super Narrow LCD unit using the latest LED (light emitting diode) backlight light dot matrix technology. Compared with the traditional splicing unit used in CCFL tubes, projection lamp, PDP light source such as a cathode ray tube, it has: high luminous efficiency, low heat, low power consumption, no radiation, long life, small size, easy to damage and other prominent advantage.
LED backlighting good color reproduction, lifelike images
LED backlight itself is relatively wide color gamut, color reproduction can reach 135%, CCFL color reproduction is generally about 80%. Better color reproduction, color is more real, more vivid images.

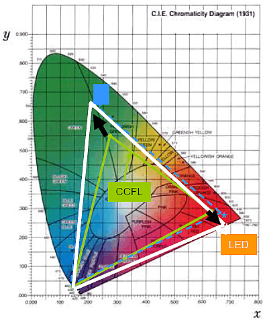

CCFL and LED backlight based color display contrast.
Energy saving, environmental protection, no radiation
LED backlight is a cold light source, no-ray radiation.
LED light emitting ionized gas is not required, and therefore no lead, mercury and other heavy metals, no environmental pollution.
LED dot dense, uniform backlight brightness
HY-550D backlit by a plurality of LED, multi-point distribution, densely arranged. Point light source by scattering and optical lens professional film projection, formed over a uniform backlight source. Screen in bright field and dark-field display, can reflect the true effect of the brightness of the image.
Backlight system without glass materials, safe transport
LED backlight is completely solid, unlike CCFL that requires a long, thin glass arc tube, so the higher the mechanical strength of the whole unit, all devices are unbreakable, transportation, installation and high security.
Long life, long-term use color uniformity is good, basically no maintenance
LCD panel with a high degree of color uniformity, long-term use, the panels color is almost the same, no need to maintain a better color mosaic effect and the timing for maintenance.
Life LED backlight unit for up to 60,000 hours. LED LCD unit is currently the longest service life, the most easy to maintain tiled display terminal.
HY-550D series of ultra-slim bezel LCD wall unit fight
LCD splicing unit size | 55-inch Ultra Narrow LCD splicing unit |
| VGAinput | 1 | |
LCD splicing unit type | HY-550D | DVIinput | 1 | ||
| Panel Type | 55”DID LED Panel | HDMIinput | 1 | |
Display Size | 1290.6（H) *680.4(V)（mm） | Composite video input(AV) | 2(BNC*2) | ||
Zoom | 16:9 | Composite video input（AV） | 2(BNC*2) | ||
Backlight Type | LED | Control signal input | RS232（RJ45-8Interface） | ||
Resolution | 1920*1080 | Control signal loop out | RS232（RJ45-8Interface） | ||
Color Display | 16.7M(8bit) | Power supply | Power input | AC100-240V,50 /60HZ | |
Brightness | 500cd/m2 | Power Consumption | ≤240W | ||
Contrast | 3000:1 | Jobs | Operating temperature | 0℃—50℃ | |
Viewing angle | 178° | Storage temperature | -20℃-60℃ | ||
Response time | ≤6ms | Operating / Storage humidity | 20%-80% | ||
Life | 60000hour |
| Cabinet / Stand | Custom made | |
Physical patchwork | 5.3mm | Installation accessories | Custom made | ||
Power | The color system | PAL/NTSC/SECAM | Mounting |
